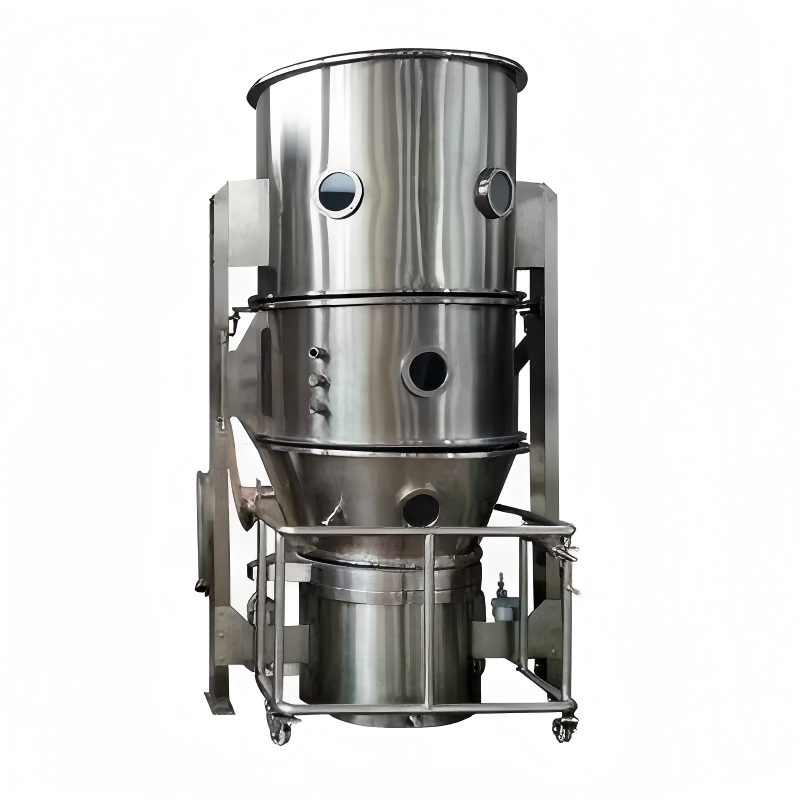

The Industrial Drying Machine with fluid bed granulation process is a FL Series production system engineered specifically for nutraceuticals and supplements production. This integrated unit combines top-spray granulation, fluidized bed drying, and mixing in a single machine. Designed for nutritional powder processing, it delivers uniform granule formation, precise moisture control, and GMP-compliant operation for dietary supplement, vitamin, and herbal extract manufacturing.
| Item | 60 Unit |
| Container Volume | 220L |
| Container Diameter | 1000mm |
| Min Capability | 30kg |
| Max Capability | 90kg |
| Fan Capacity | 3000m³/h |
| Fan Pressure | 950mmH₂O |
| Fan Power | 11kw |
| Steam Expenditure | 141kg/H |
| Compressed Air Expenditure | 1m³/Min |
| Weight Of The Main Body | 1100kg |
| Steam Pressure | 0.3-0.6MPa |
| Temperature | Room Temperature To 120℃ |
| Working Time | 45-90 Min |
| Field | ≥99% |
| Noise | ≤75db(A) |
| Size(LxWxH) | 1.85x1.4x3m |
Dietary supplement granulation, vitamin and mineral powder processing, herbal extract granule production, protein powder agglomeration, sports nutrition formulation, probiotic powder drying, amino acid granulation, functional food ingredient processing.
With extensive expertise in nutraceutical equipment manufacturing, we deliver FL Series fluid bed granulation systems built to international GMP standards. Each machine includes complete IQ/OQ/PQ documentation, CE certification, and dedicated after-sales support. Factory acceptance testing ensures reliable performance for your nutraceutical production needs.
