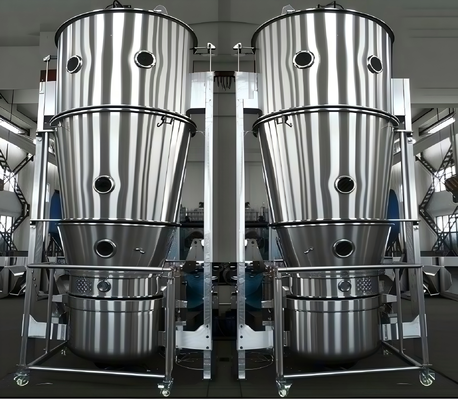

The FL Series Fluid Bed Spray Granulator is an industrial drying machine engineered for efficient powder to granule transformation. This integrated system combines top-spray granulation with fluidized bed drying technology, converting fine powders into uniform, free-flowing granules in a single process. Designed for pharmaceutical, chemical, and food powder processing, it delivers consistent granule size, precise moisture control, and superior flowability for downstream processing.
| Item | 300 Unit |
| Container Volume | 1000L |
| Container Diameter | 1600mm |
| Min Capability | 150kg |
| Max Capability | 450kg |
| Fan Capacity | 7000m³/h |
| Fan Pressure | 950mmH₂O |
| Fan Power | 30kw |
| Steam Expenditure | 366kg/H |
| Compressed Air Expenditure | 1.5m³/Min |
| Weight Of The Main Body | 1800kg |
| Steam Pressure | 0.3-0.6MPa |
| Temperature | Room Temperature To 120℃ |
| Working Time | 45-90 Min |
| Field | ≥99% |
| Noise | ≤75db(A) |
| Size(LxWxH) | 2.8x2.0x4.0m |
Pharmaceutical powder granulation, chemical powder to granule conversion, food ingredient agglomeration, instant beverage powder processing, herbal extract granulation, detergent powder granulation, ceramic powder processing, nutritional supplement formulation.
With extensive expertise in powder processing equipment manufacturing, we deliver FL Series fluid bed spray granulation systems built for reliable powder to granule transformation. Each machine includes complete documentation, CE certification, and dedicated after-sales support. Factory acceptance testing ensures consistent spray granulation performance for your production needs.
